About the lift

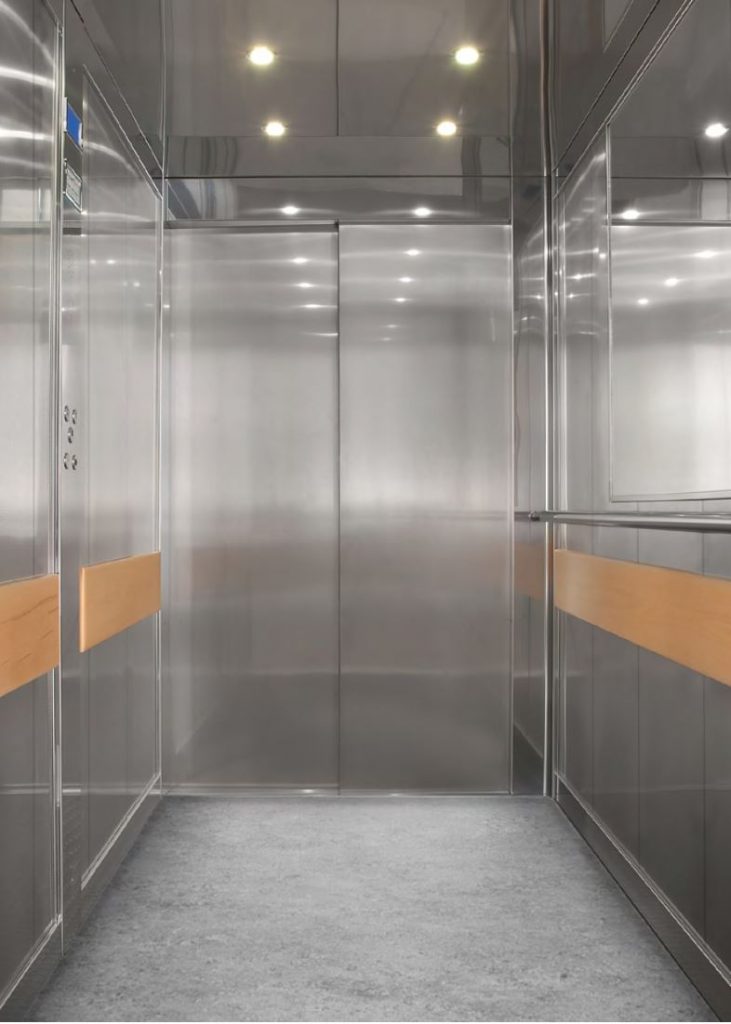

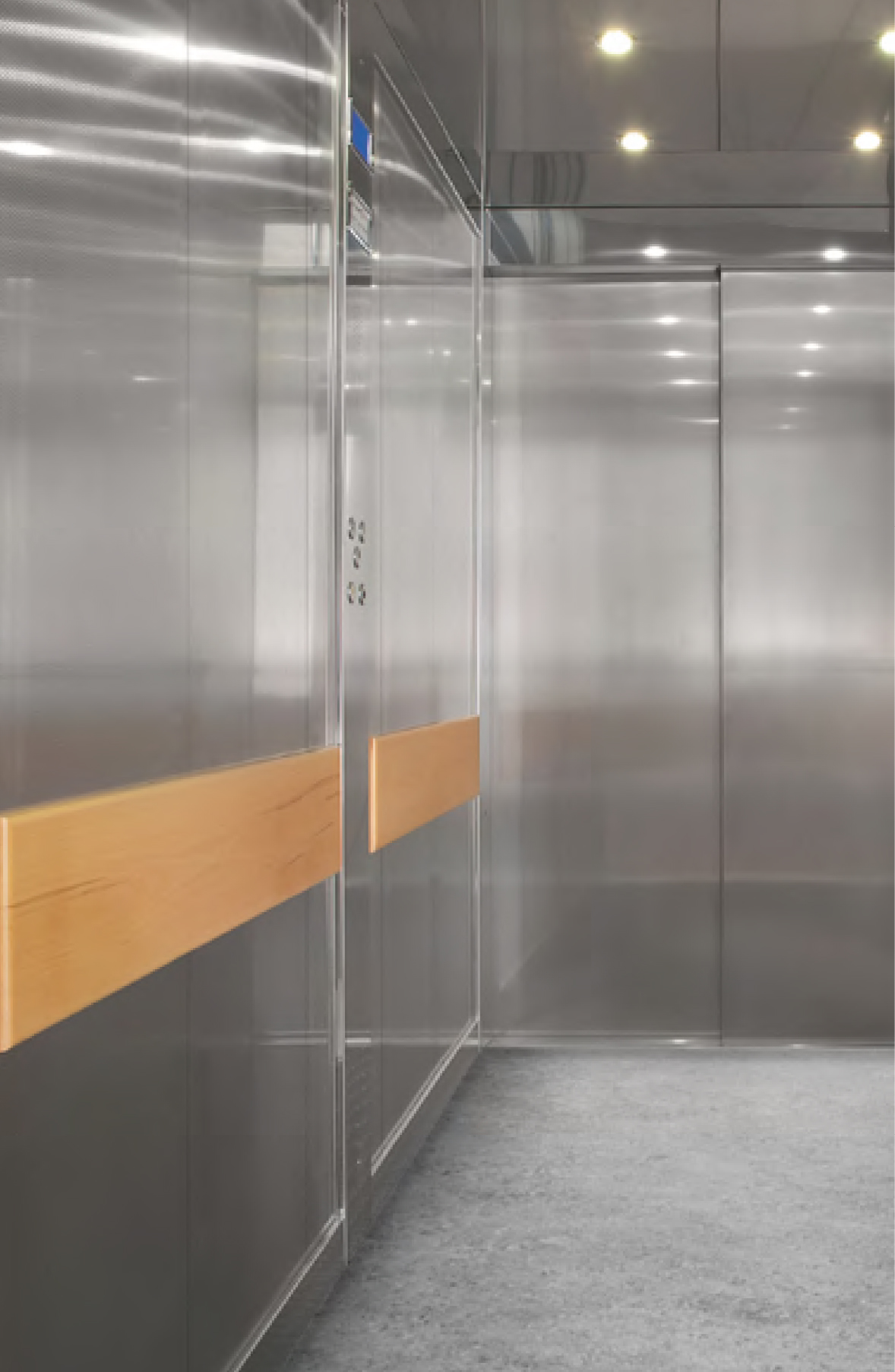

Commercial Stretcher Lift
Medical and Aged Care elevator solution.
Complying to AS1735.1 / 12 General Passenger Lift, the Commercial Stretcher Lift package is designed specifically for commercial and public applications. This commercial lift comes with all the requirements of AS1735.1 / 12. Complying to the Building Code of Australia (BCA) Platinum Elevators have tailored a complete package for every Stretcher Lift as ‘standard’, making it an extremely reliable General Passenger lift with automatic sliding cabin and landing doors.

Your commercial elevator package includes
6 x LED ceiling lights
Grey separate push buttons with braille
Luxury skinplate and stainless steel wall finishes
Cabin and landing door enabling keys
Auto-dial phone with integrated soft touch button
Brushed stainless steel handrail
Voice Annunciator
Digital cabin and landing display
Full height control operating panel with sleek button integration design.
Safety Information
Battery backup and cabin lighting in case of power failure
Automatic return to any floor of your choice
Full height light curtain protection beams across cabin entrance
Over load alarm and indicator
Creeping speed feature


Complete design flexibility
Whether it’s for a new commercial build or looking to retrofit a commercial lift into an existing building, Platinum Elevators highly skilled consultants can assist you with design, ideas and concepts to ensure you get the correct product designed for the right application and complying with all current Australian commercial lift regulations. You will be amazed where we can incorporate a Commercial Stretcher Lift into any building design, minimising space and saving on unnecessary builders works.
Platinum Elevators will custom design the largest possible cabin size to suit any existing shaft or we can customise a Glazed Metal Structure Shaft to surround the Commercial Lift in both indoor and outdoor applications. The Commercial Stretcher Lift by Platinum Elevators is an industry leading General Passenger Lift with reliability by design.
Experience amazing

LIFT CODE
AS1735.1/12

CABIN SIZE
1100w x 2100d (mm)

DOOR OPENING
900mm

LOAD RATING
1000kg

SPEED
0.60m/s or 1.0m/s

TRAVEL
12m (Max)

PIT SIZE
1300mm

HEAD ROOM
3300mm

LIFE SPAN
30+ years



POWER
Three Phase 415V
