About the lift

Commercial Crown Lift

Complying to AS1735.1 / 12 General Passenger Lift

The Commercial Crown Lift package is designed specifically for Commercial and Public applications. This Lift comes with all the requirements of AS1735.1 / 12 and is Design Registered with WorkSafe.

Complying with the Building Code of Australia (BCA) and the DDA for Limited Mobility.

Platinum Elevators have carefully designed a complete package for every Commercial Crown Lift as “standard” making the Commercial Crown Lift an extremely reliable General Passenger lift with automatic sliding cabin and landing doors. This commercial lift package is industry leading with many inclusions and technology comforts for the users.

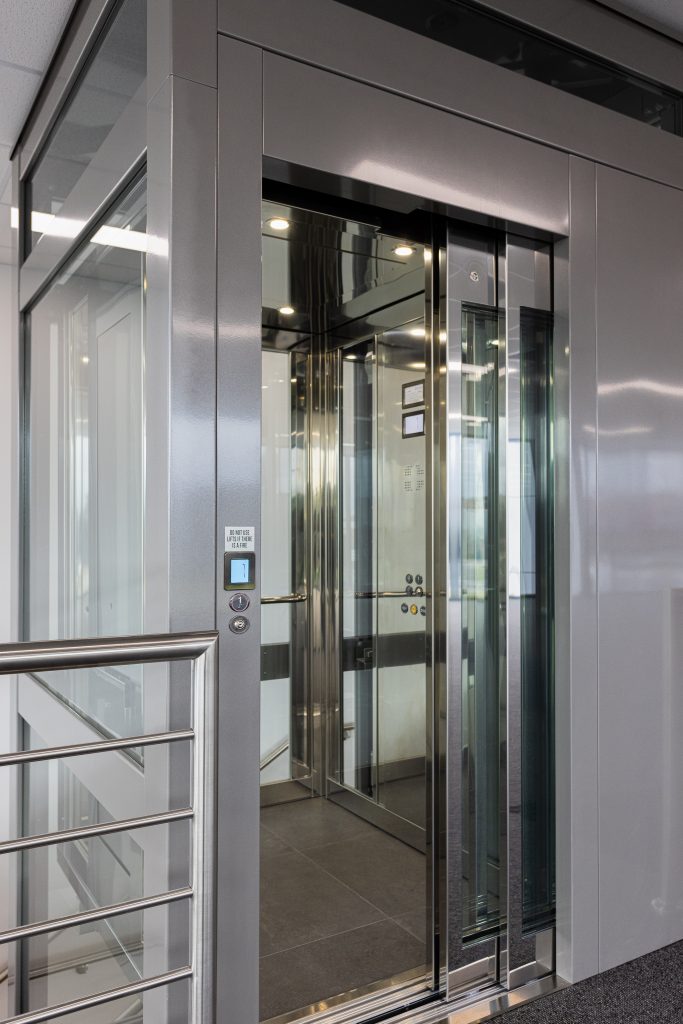

commercial lift with a sleek finish
Your elevator package includes

4 x LED ceiling lights
Digital cabin and landing display
Stylish push buttons with braille
Wide range of luxury skinplate wall finishes
Cabin and landing door enabling keys
Stainless steel handrail
Dual full height control operating panels with sleek button integration design.

Safety Information

Battery backup and Cabin lighting in case of power failure
Automatic return to lowest floor
Full height light curtain protection beams across cabin entrance
Over Load Alarm and Indicator
Creeping Speed Feature.

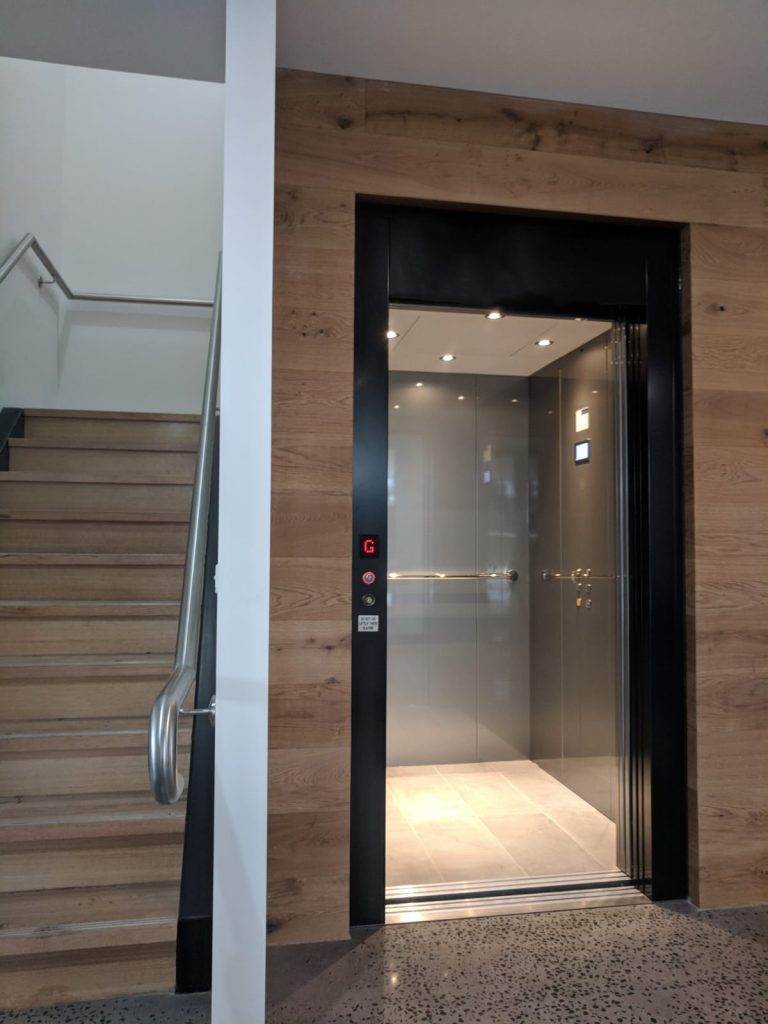

commercial lift with wooden wall feature

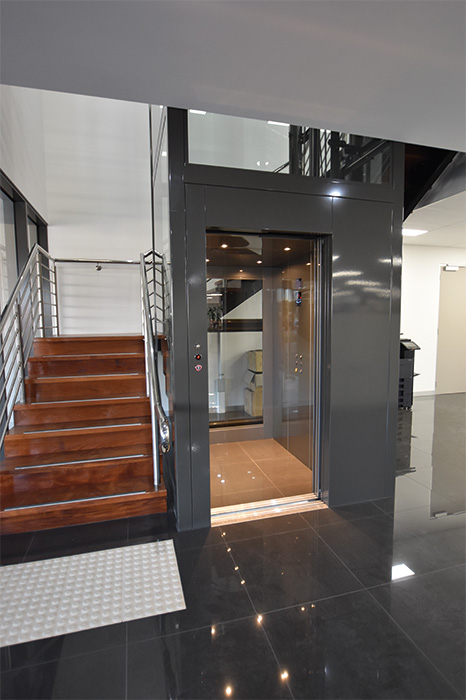

crown commercial lift next to stairs and railing in melbourne office setting
Complete design flexibility

Whether it’s for a new commercial build or looking to retrofit a commercial lift into an existing building, Platinum Elevators highly skilled consultants can assist you with design, ideas and concepts to ensure you get the correct product designed for the right application and complying with all current Australian commercial lift regulations. You will be amazed where we can incorporate a Commercial Crown Lift into any building design, minimising space and saving on unnecessary builders works.

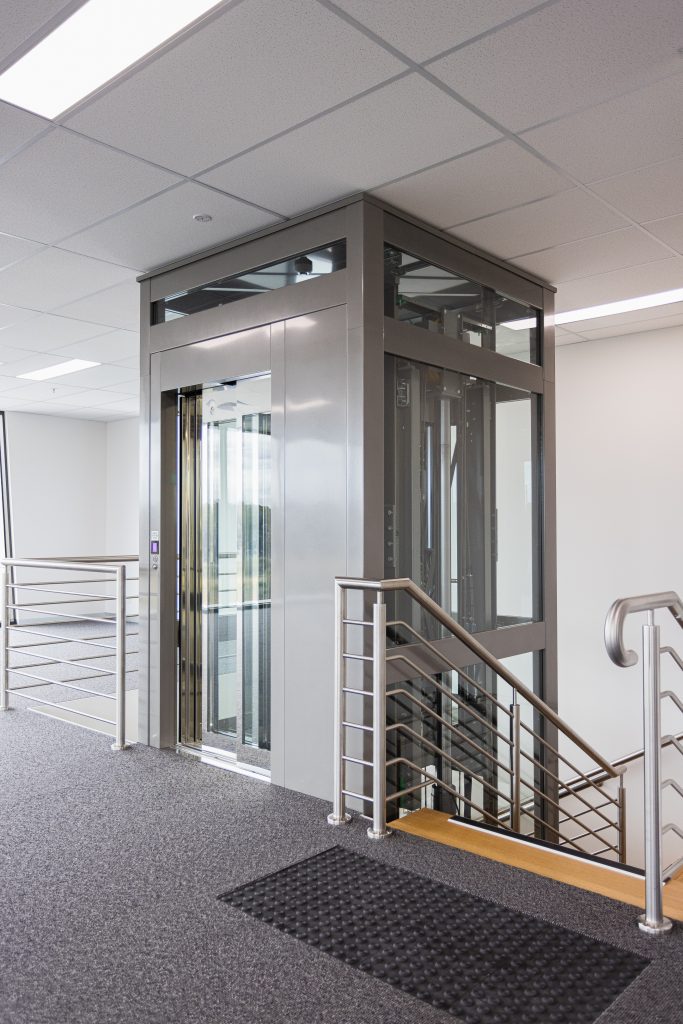

Platinum Elevators will custom design the largest possible cabin size to suit any existing shaft or we can customise a Glazed Metal Structure Shaft to surround the Commercial Lift in both indoor and outdoor applications. The Commercial Crown Lift by Platinum Elevators is an industry leading General Passenger Lift with reliability by design.

Experience amazing
lift code australia
LIFT CODE

AS1735.1/12

cabin size of a lift
CABIN SIZE

1100w x 1400d (mm)

door opening of a lift
DOOR OPENING

900mm

load rating of a lift
LOAD RATING

630kg

travel speed of an elevator
SPEED

0.60m/s

how high a lift can go australia
TRAVEL

12m (Max)

pit size of a lift
PIT SIZE

1300mm (Min)

head room in a lift
HEAD ROOM

3300mm (Min)

how long an elevator lasts
LIFE SPAN

30+ years

how much power does a lift use
POWER

Three Phase 415V

how long an elevator lasts
LIFE SPAN

30+ years

how much power does a lift use
POWER

Three Phase 415V
